How to Choose MGMN Inserts for Grooving and Parting Operations
MGMN Inserts for Grooving and Parting: Sizes, Uses and Practical Tips
What Is an MGMN Insert?
An MGMN insert is an indexable carbide insert used in grooving and parting operations on CNC turning machines. Its symmetrical double-ended design allows both edges to be used, improving efficiency and reducing cost per cutting edge.
In grooving applications, the cutting geometry is mainly defined by the tool holder, while the insert provides a stable cutting edge and repeatable positioning.
These inserts are widely used as part of modern indexable cutting tools, offering flexibility, easy replacement, and consistent performance.
Typical Applications in Grooving and Parting
MGMN inserts are mainly used for parting and grooving, but they can also handle additional machining tasks.

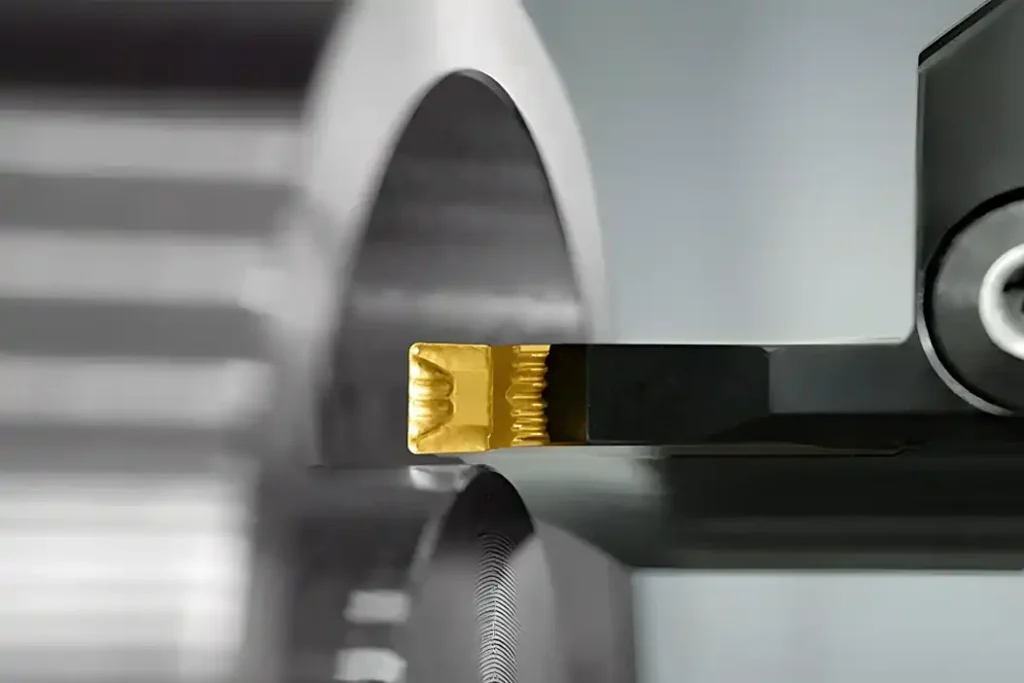

External Grooving
Used to machine grooves on shafts and cylindrical components. Groove width depends on insert size and cutting conditions.
Parting Off
In parting operations, the insert separates the workpiece completely. Stable cutting force and good chip control are critical to avoid failure.
Light Profiling and Finishing
While MGMN inserts can perform light profiling or finishing, their long shape means lower rigidity compared to standard turning tools. Feed rates should be controlled to prevent deflection.
MGMN Insert Sizes: MGMN150, MGMN200 and More
The numerical suffix represents the cutting width (e.g., 200 = 2.0 mm), allowing precise matching with groove specifications.
MGMN Insert Size Comparison
| Model | Cutting Width (mm) | Typical Application | Stability Level |
|---|---|---|---|
| MGMN150 | 1.5 | Narrow grooves, precision work | Medium |
| MGMN200 | 2.0 | General grooving and parting | High |
| MGMN300 | 3.0 | Deeper grooves, higher feed | Very High |
| MGMN400 | 4.0 | Heavy-duty operations | Maximum |
MGMN200 is the most commonly used size in general machining due to its balance between strength and cutting efficiency.
Chipbreaker Style and Cutting Performance
Chipbreaker style directly affects chip formation, cutting force, and tool life.
Chipbreaker Style Comparison
| Style | Cutting Condition | Suitable Material | Key Advantage |
|---|---|---|---|
| G | Light cutting | Aluminum, soft materials | Sharp edge, low friction |
| M | General purpose | Steel, stainless steel | Balanced chip control |
| H | Heavy cutting | Harder materials | Strong edge, high stability |
The M style is the most widely used, offering stable performance across different materials.
How to Choose MGMN Inserts by Material
Selecting the right insert depends heavily on the workpiece material.
Steel
Use coated carbide inserts for balanced wear resistance and performance.
Stainless Steel
Requires a sharper cutting edge to reduce built-up edge and heat.
Cast Iron
Use wear-resistant grades to maintain durability.
Aluminum
Uncoated or polished inserts reduce friction and improve surface finish.
Proper selection improves tool life, machining stability, and overall productivity.
Using MGMN Inserts with Standard Tool Holders
MGMN inserts are designed to fit standard grooving toolholder systems, making them easy to integrate.
Setup Tips
- Ensure the insert is correctly positioned in the holder
- Maintain precise center height alignment
- Reduce overhang to improve stability
A stable setup helps control cutting force and ensures consistent machining results.
Common Problems and Practical Solutions
Troubleshooting MGMN Inserts
| Problem | Possible Cause | Solution |
|---|---|---|
| Insert chipping or failure | Excessive cutting force | Reduce feed, improve rigidity |
| Poor chip control | Incorrect chipbreaker style | Select proper insert style |
| Short tool life | Wrong grade or coating | Use suitable carbide grade |
| Poor surface finish | Edge wear or instability | Replace insert, check setup |
Engineering Compatibility and Supplier Considerations
MGMN inserts are typically manufactured according to standard ISO dimensions, ensuring compatibility with common grooving tool holders such as MGEHR/L systems.
This allows users to switch suppliers without changing existing setups.
For many buyers, consistency and supply stability matter more than branding.
Suppliers like FH provide a practical solution by offering stable-quality carbide inserts with reliable performance and cost advantages.
Final Tip for Selection
When selecting an MGMN insert, consider:
- Workpiece material
- Cutting conditions (continuous or interrupted)
- Required groove width
- Machine stability
A proper selection approach leads to longer tool life, reduced failure risk, and more consistent machining results.
